Eurocopter EC130 B4 (1 aircraft)

The EC130 B4 Ecureuil, the passenger-carrying helicopter par excellence, is Ideally suited to VIP service. Fitted with anti-noise headsets, complete with integrated Bose sound system and Hermes leather interiors, the EC130 B4 is a fast, comfortable and passenger-carrying freight transportation helicopter capable of meeting the most demanding needs.

GENERAL CHARACTERISTICS

Crew : one pilot
Capacity : 6 passengers (two at front and four at back) can be modified to take seven passengers (three at front and four at back)
Length : 35 ft (10.68 m)
Rotor diameter : 35 ft (10.69 m)
Height : 10 ft 11 in 93.34 m)
Empty weight : 3,036 lbs (1,377 kg)
Loaded weight : 5,351 lbs (2,427 kg)
Powerplant : 1 × Turbomeca Arriel 2B1 turboshaft, 847 hp (632 kilowatts)

PERFORMANCE

Maximum Speed  : 155 kn (287 km / h, 178 mph)
Cruise speed : 130 kn (240 km / h, 150 mph)
Range : 329 nmi (610 km, 378 mi)
Altitude restrictions : 15,655 ft (4,770 m)

Eurocopter DAUPHIN AS365 N1 (1 aircraft)

Incorporating many of the improvements developed for the SA 366 G1 (HH-65 Dolphin), this version introduced upgraded 526 kW (705 shp) Arriel 1C1 turboshafts, an improved 11-blade Fenestron with wider-cord blades (which reduced the AS365 N1′s noise signature), movable undercarriage doors replaced by simplified fairings and a higher gross weight of 4,100 kg (9,039 lb).

GENERAL CHARACTERISTICS

Crew : 1 or 2 pilots
Capacity : 11 passengers (8 seats configuration)
Length : 45 ft 1 in (13.73 m)
Rotor diameter : 39 ft 2 in (11.94 m)
Height : 13 ft 4 in (4.06 m)
Empty weight : 5,315 lb (2,411 kg)
Loaded weight : 9,480 lb (4,300 kg)
Powerplant : 2 × Turboméca Arriel 1C1 turboshaft, Take-off Power, 705 hp (526 kW) each

PERFORMANCE

Maximum speed: 165 kn (306 km/h, 190 mph)
Ferry range: 447 nmi (827 km, 514 mi)
Service ceiling: 19,242 ft (5,865 m)
Rate of climb: 1,750 ft/min (8.9 m/s)

Eurocopter AS355 N

The AS355 is used by both private individuals and companies, by helicopter charter and training organisations, as well as for law enforcement and government use.

GENERAL CHARACTERISTICS

Crew : one  pilot

Capacity : 6 passangers

Length : 42.5 ft (12.94 m)

Rotor diameter : 35 ft (10.69 m)

Height 10 ft 3.5 in ( 3.14 m)

Empty weight : 2,877 lb (1,305 kg)

Loaded weight : 5,720 lb (2,600 kg)

Powerplant : 2 × Turbomeca Arrius 1A Turboshaft, 313 each kW (420 shp)

PERFORMANCE

Maximum Speed  : 150 kn (278 km / h, 172 mph)
Cruise speed : 121 kn (224 km / h, 139 mph)
Range : 380 nmi (703 km, 380 mi)
Altitude restrictions : 11,150 ft (3,400 m)

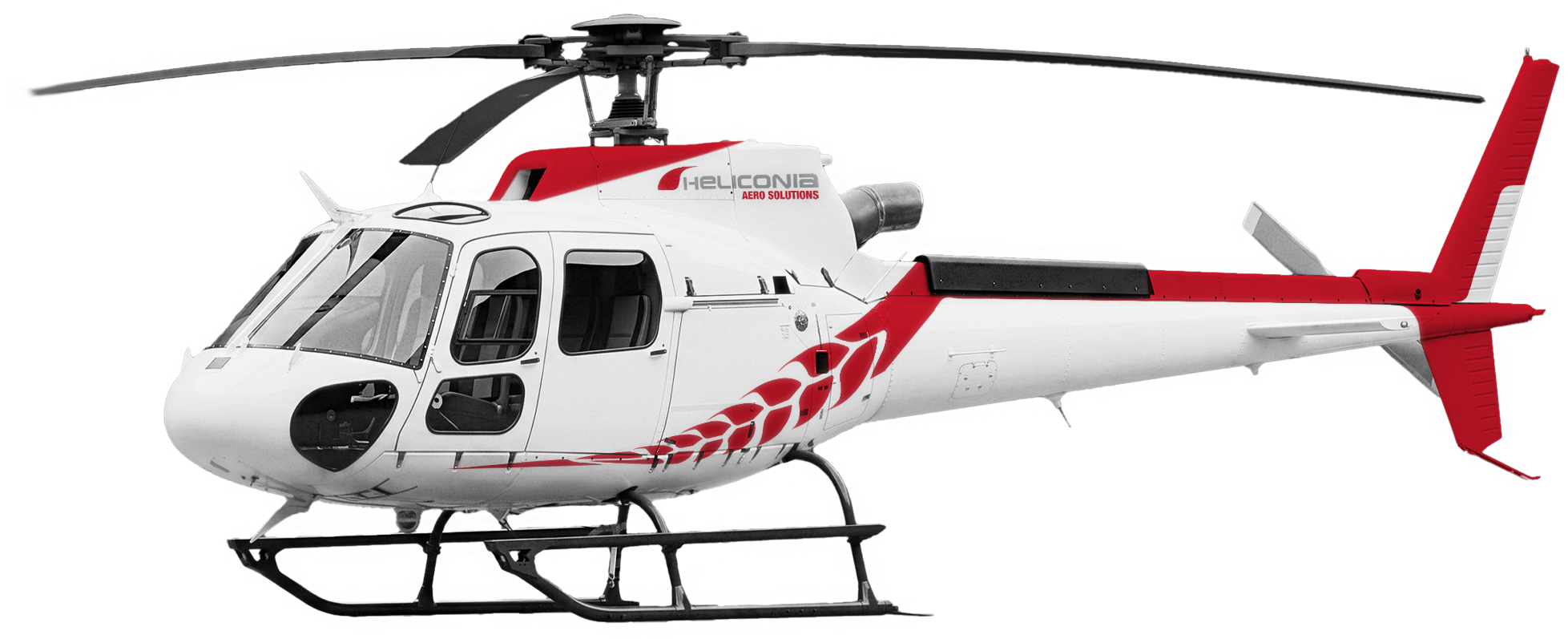

Eurocopter AS350 B2

The Ecureuil AS 350 B2 is one of the best sellers produced by Eurocopter. It is suitable for all aerial work, whether carrying passengers or freight transporting. ICTS high performance levels mean that it can successfully carry out a very wide range of tasks across all kinds of terrain. With its two-seater benches, it can take up to 6 passengers.

GENERAL CHARACTERISTICS

Crew : one or two pilots
Capacity : 5/6 passangers, Including pilot
Length : 29.5 ft (9.0 m)
Rotor diameter : 33 ft (10.1 m)
Tail rotor diameter : 4 ft 10 in (1.5 m)
Height 10 ft 9 in ( 3.3 m)
Empty weight : 1,450 lb (657.7 kg)
Loaded weight : 2,500 lb (1,134 kg)
Powerplant : 1 × Turbomeca Arriel 1D1 turboshaft, 546 kW (732 shp)

PERFORMANCE

Maximum speed : 130 kn (240 km / h, 150 mph)
Cruise speed : 110 kn (200 km / h, 130 mph)
Range : 300 nmi (560 km, 350 mi)
Altitude restrictions : 14,000 ft (4,300 m) density altitude or 9,000 ft (2,700 m) above ground level in order to be ble to reach ground Within 5 minutes in case of fire.

Eurocopter AS350 B3

The AS350 B3 is a very high-performance aircraft capable of carrying out the most demanding tasks in the most extreme conditions. Its exceptional load capacity, extreme endurance and impressive cruising speed make it one of the highest all-around performers in the helicopter market. The AS 350 B3 is capable of reaching 3,000 meters in 2 minutes and 21 seconds, and carries 1,100 kg (at sea level).

GENERAL CHARACTERISTICS

Crew : one or two pilots
Capacity : 5/6 passangers, Including pilot
Length : 29.5 ft (9.0 m)
Rotor diameter : 33 ft (10.1 m)
Tail rotor diameter : 4 ft 10 in (1.5 m)
Height 10 ft 9 in ( 3.3 m)
Empty weight : 1,450 lb (657.7 kg)
Loaded weight : 2,500 lb (1.134 kg)
Powerplant : 1 × Turbomeca Arriel 2B turboshaft, 632 kW (847 shp)

PERFORMANCE

Maximum speed : 130 kn (240 km / h, 150 mph)
Cruise speed : 110 kn (200 km / h, 130 mph)
Range : 300 nmi (560 km, 350 mi)
Altitude restrictions : 14,000 ft (4,300 m) density altitude or 9,000 ft (2,700 m) above ground level in order to be ble to reach ground Within 5 minutes in case of fire.

Eurocopter AS350 BA

This multipurpose, single-engine AS350 B2, powered by a 732 shp (546 kilowatts) Turbomeca Arriel 1D1 engine, has an outstanding proven track record. Its flexibility and low cost of acquisition have made it a highly sought-after helicopter. It is capable of performing a wide range of missions, including passenger transportation, aerial work, training, observation, fire fighting, and law enforcement, among others.

GENERAL CHARACTERISTICS

Crew : one pilot
Capacity : 5 passengers
Length : 35.75 ft (10.9 m)
Rotor diameter : 33 ft (10.1 m)
Tail rotor diameter : 4 ft 10 in (1.5 m)
Height 10 ft 9 in (3.3 m)
Empty weight : 1,450 lb (657.7 kg)
Loaded weight : 2,500 lb (1.134 kg)
Powerplant : 1 × Turbomeca Arriel 1B turboshaft, 520 kW (700 shp)

PERFORMANCE

Maximum speed : 130 kn (240 km / h, 150 mph)
Cruise speed : 110 kn (200 km / h, 130 mph)
Range : 300 nmi (560 km, 350 mi)
Altitude restrictions : 14,000 ft (4,300 m) density altitude or 9,000 ft (2,700 m) above ground level in order to be ble to reach ground Within 5 minutes in case of fire.

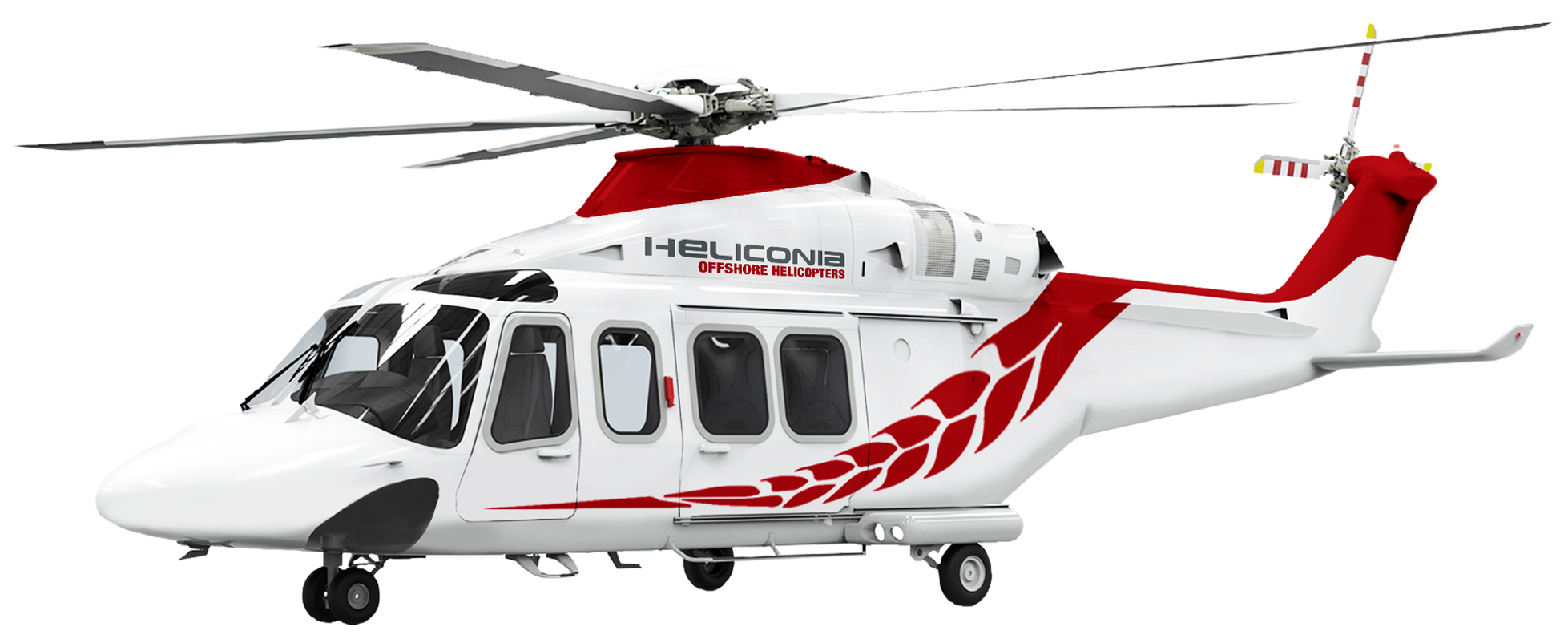

Agusta AW139

The AW139 is the market-leading intermediate twin-engine helicopter – the benchmark for safety design features, performance capabilities and productivity in challenging multi-role operations all over the world.

GENERAL CHARACTERISTICS

Crew : 1 to 2
Capacity : 15 passengers
Length : 13.77 m (45 ft 2 in)
Rotor diameter : × 13.80 m (45 ft 3 in)
Height 3.72 m (12 ft 2 in)
Empty weight : 3,622 kg (7,985 lb)
Loaded weight : 6,400 kg (14,110 lb)
Powerplant : 2 × Pratt & Whitney Canada PT6C-67C turboshaft engine, 1,142 kW (1,531 hp) each

PERFORMANCE

Maximum speed 310 km/h (193 mph)
Cruising speed : 306 km/h (191 mph)
Ferry range : 1,250 km (675 miles)
Service ceiling : 6,096 m (20,000 ft)
Rate of climb : 10.9 m/s (2,140 ft/min).
